443.725 PL186.2 REPEATER SYSTEM

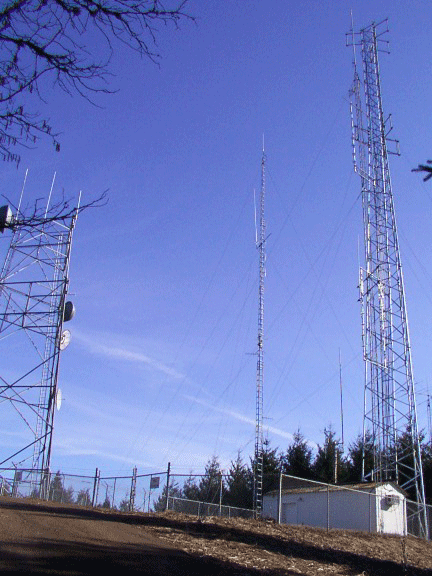

• This system is located  South of Salem about six miles on one of the knobs of Prospect Hill off Skyline Road at a elevation of 1,000 feet. The system is housed in the Marion County Public Works building and our antenna is on the county's tower at 100 feet above the ground.

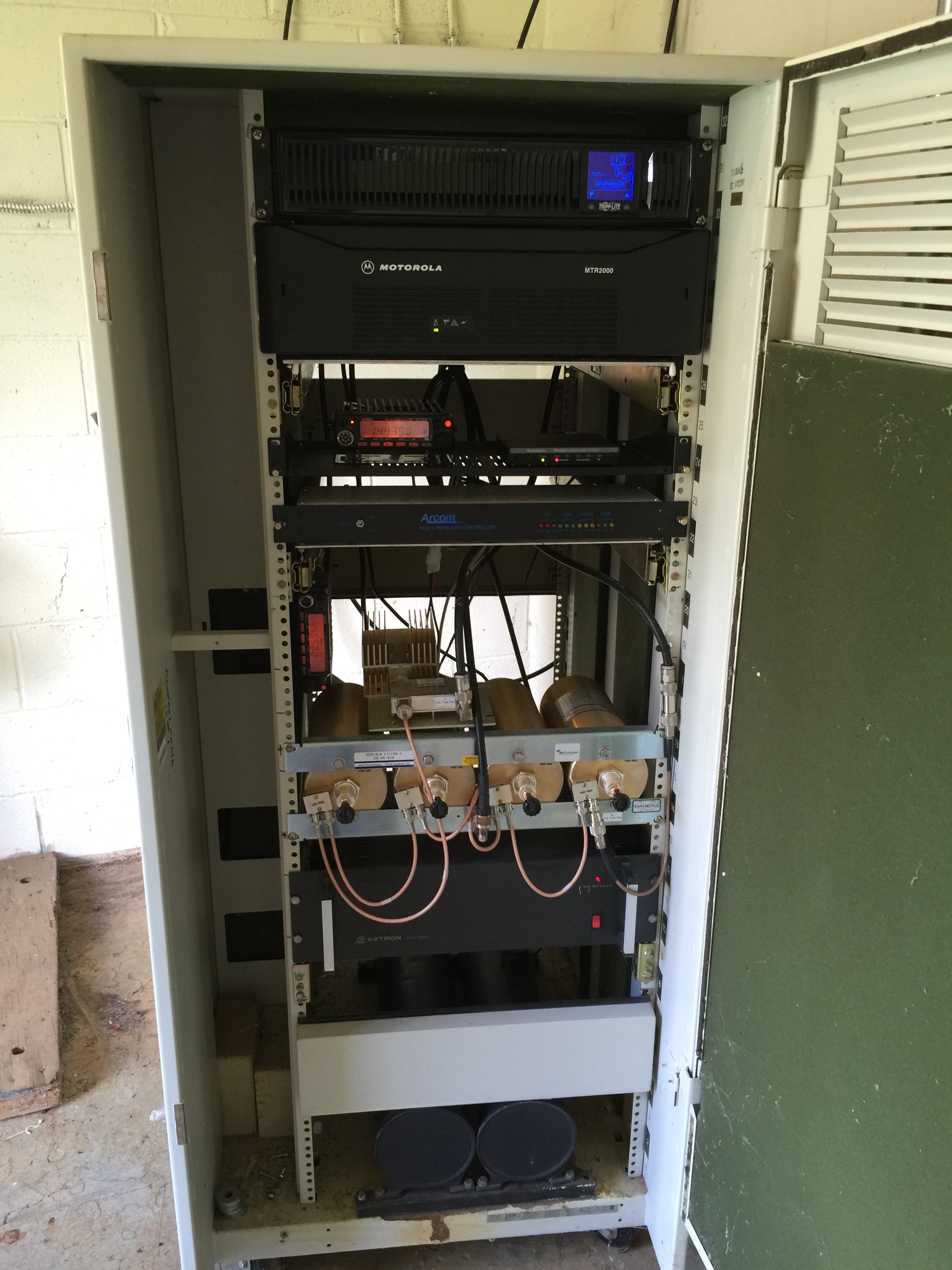

• The repeater is a new Motorola MTR2000 commercial system and runs on commercial power with a standby generator in case of a commercial power failure. It has a power output of 100 watts into a 4-duplexer system and is connected to a 10 DB gain antenna on the tower. The repeater is controlled by  a S-Comm 7K controller and has several other features.



• This repeater also views the south Willamette Valley and has coverage from north Eugene to the Portland area.



• The 443.725 PL186.2 repeater identifies as W7SRA (SRA club callsign). System operator for this repeater is .
  For further information, contact Larry at 503-585-8897 or email to
